The therapeutic efficacy of antibodies is closely related to their ability to recognize and bind specific epitopes on target antigens. Epitopes, or antigenic determinants, are a group of amino acids or other chemical groups that are part of a molecule to which an antibody attaches itself. Epitope characterization can help reveal the mechanism of antibody binding and apply intellectual property (patent) protection for novel antibodies, in addition to designing antibodies with high specificity and minimal cross-reactivity. Thus, understanding the nature of these epitopes will assist in developing effective antibody-based therapies.
Antibodies, or immunoglobulins, exert their therapeutic effects primarily through the specific binding to antigens, which are often proteins associated with pathogens or diseased cells. The binding site on the antigen, known as the epitope, determines the specificity and strength of this interaction.
There are generally two categories of epitopes: linear and conformational. Linear epitopes are short, continuous sequences of amino acids that are usually flexible and can adapt their conformation to form weak interactions with a complementary antibody. Conformational epitopes are formed by amino acids brought together by the protein’s three-dimensional structure, adjacent to the structural surface of the protein after folding.1
While linear epitopes account for only approximately 10% of B-cell epitopes, the majority are conformational and composed of discontinuous regions that fold into a surface-accessible conformation. This structural complexity poses challenges for experimental mapping, especially in the absence of co-crystal structures.
The affinity of an antibody for its epitope is a key determinant of its therapeutic potential. High-affinity interactions ensure robust binding, which can enhance the antibody’s ability to neutralize its target or recruit immune effector functions. Conversely, low-affinity interactions may result in suboptimal therapeutic outcomes. Epitope specificity is essential for minimizing off-target effects and ensuring that antibodies selectively target pathogenic cells without affecting healthy tissue. However, epitopes that are highly conserved across different proteins can lead to cross-reactivity, where an antibody binds to unintended targets, potentially causing adverse effects.
In addition to affinity and specificity, epitope structural flexibility influences antibody recognition. Conformational selection, which is a mechanism in which antibodies bind to pre-existing antigen conformers, plays a significant role in interactions involving disordered or flexible regions. Anti-amyloid antibodies and antibodies that target proline/alanine-rich sequences (PAS motifs) exemplify the recognition of disordered epitopes with extensive residue contacts and shape complementarity.
Epitope characterization methods often depend on the functional binding of antibodies to the antigen or its fragments. One approach involves narrowing down the epitope location by testing the antibody's ability to bind to antigen fragments. Binding assays like ELISA, dot blot, or Western blot can then help identify the epitope's position within the overall structure of the antigen.2
High-throughput approaches such as phage display libraries and peptide microarrays enable screening of linear epitopes using overlapping peptides or mimotopes. For example, Phage ImmunoPrecipitation Sequencing (PhIP-Seq) allows profiling of antiviral antibody specificities at scale, while AbMap facilitates the simultaneous mapping of linear and conformational epitopes for hundreds of monoclonal antibodies using peptide-displaying phage libraries followed by next-generation sequencing. Mimotopes are peptides that mimic the native epitope structure and can also be used for both antibody discovery and vaccine development when the native epitope is conformational or otherwise inaccessible.
Epitope mapping is the process of experimentally identifying the epitope on its target antigen. X-ray crystallography can provide detailed structural information about antibody-antigen complexes at atomic resolution. By determining the three-dimensional structure of these complexes, researchers can precisely identify the epitope regions and understand the molecular basis of antibody binding. Although this method offers high accuracy, it is technically challenging and requires the crystallization of antibody-antigen complexes, which is not always feasible.
Cryo-EM has emerged as a complementary technique to X-ray crystallography, especially useful for studying large protein complexes and those difficult to crystallize. Recent advances in cryo-EM have significantly improved its resolution, allowing for detailed visualization of antibody-epitope interactions. This method is particularly advantageous for analyzing conformational epitopes and dynamic interactions.
To overcome the limitations of these methods, hydrogen/deuterium exchange (HDX) mass spectrometry is sometimes used to infer the antibody-binding interface. However, HDX results can be confounded by allosteric effects distant from the actual binding site. Another alternative involves protease incision-based mapping (PIC), where controlled protease digestion identifies surface-accessible peptides. These peptides can serve as synthetic immunogens or be correlated with functional activity, as demonstrated in antibodies targeting TRPV1 and KRAS-mutated antigens.
Several other approaches can be employed for epitope mapping, each with its own advantages and limitations:
Peptide Scanning: This involves synthesizing overlapping peptides spanning the entire antigen sequence and testing their binding to the antibody. It is effective for identifying linear epitopes but not for conformational epitopes.
Mutagenesis Studies: Site-directed mutagenesis can be used to systematically alter amino acids within the antigen and assess the impact on antibody binding. This method helps identify critical residues within both linear and conformational epitopes.
Surface Plasmon Resonance (SPR): SPR measures the binding kinetics of antibodies to immobilized antigens in real-time, providing insights into the affinity and specificity of the interaction. By analyzing various antigen variants, researchers can infer the epitope regions.
Bio-Layer Interferometry (BLI) offers a comparable alternative with higher throughput in some formats. These methods are often used in epitope binning, where competition profiles among a panel of antibodies are analyzed to identify overlapping or distinct binding regions.
Computational prediction of epitopes, especially conformational ones, remains a challenging yet rapidly advancing area. Machine learning methods based on structural and sequence features have enabled improved epitope mapping without experimental structures.
Linear epitope predictors, such as BcePred, ABCPred, and the deep learning-based EpiDope, use sequence features like hydrophilicity, flexibility, and polarity. EpiDope employs bidirectional LSTM models trained on pathogen-rich datasets for improved sensitivity.
Conformational epitope prediction tools include:
SEMA-3D: Combines protein language models with structural information from AlphaFold-derived structures.
Epitope3D: Uses graph-based signatures to differentiate epitope from non-epitope surface patches.
PECAN and EPMP: Co-train paratope and epitope networks, significantly enhancing predictive performance by incorporating known antibody binding preferences.
Docking-based prediction has also advanced with pipelines like AbAdapt, which integrates AlphaFold modeling, rigid docking, and deep learning to predict antibody-specific epitopes without co-crystallized complexes.
Large-scale docking simulations, when combined with high-throughput experimental binning (e.g., SPR), can group antibodies into functional bins and provide hypotheses about their epitope locations. This hybrid strategy is particularly useful when evaluating antibody panels with partially known binding properties.
Detailed knowledge of epitope structure and characteristics enables the rational design of therapeutic antibodies. By targeting epitopes critical for the function or survival of pathogens and cancer cells, researchers can develop antibodies with enhanced therapeutic efficacy. For instance, antibodies designed to target conserved epitopes on viral proteins can be effective across different strains, offering broad-spectrum antiviral activity. Likewise, antibodies targeting different epitopes on the same antigen can at times have opposing effects.3
Targeting conserved vs. variable regions: Antibodies directed at conserved regions can neutralize multiple variants of a pathogen, whereas those targeting variable regions may be more specific but risk losing efficacy due to antigenic drift.
Multi-epitope targeting with bispecifics: Bispecific antibodies that recognize two distinct epitopes can enhance therapeutic outcomes by improving binding specificity or facilitating dual mechanisms of action, particularly in oncology.
Paratope-epitope co-prediction: This has enabled the design of antibodies that selectively target epitopes based on known paratope features. For example, it is possible to identify conserved amino acid interaction motifs across unrelated antibodies that bind the same epitope. These motif patterns can be used to guide the discovery of antibodies with polyspecific or convergent binding properties.
Fc modifications: Engineering the Fc region can modulate immune effector functions, extend half-life, or reduce off-target effects.
Affinity tuning: Enhancing or modulating binding strength through structure-guided design can increase specificity and therapeutic window.
Reduced immunogenicity: Selecting epitopes less likely to trigger an immune response and modifying framework regions can reduce the risk of anti-drug antibodies.
Multi-epitope targeting with bispecifics: Bispecific formats can be customized to engage multiple targets simultaneously, improving efficacy in complex or heterogeneous disease environments.
Understanding the structural flexibility of epitopes and their interaction mechanisms is also important. For example, therapeutic antibodies targeting intrinsically disordered proteins (IDPs), such as those involved in neurodegenerative disease or cancer, require accommodation for fuzzy epitope boundaries. In such cases, epitope recognition involves high surface complementarity and extensive non-covalent contacts.
Founded in 2012 and certified to ISO 9001:2015, Biointron is a CRO specializing in antibody discovery, expression, and optimization services for biotech and pharmaceutical companies.
Biointron holds a leading position in the antibody expression service industry. From gene sequence to purified antibodies, our production only takes 2 weeks. We have delivered tens of thousands of recombinant antibodies for more than 3,000 biotech and pharma companies worldwide.
Lo, T., Shih, C., Pai, W., Ho, P., Wu, L., & Chou, Y. (2021). Conformational epitope matching and prediction based on protein surface spiral features. BMC Genomics, 22(Suppl 2). https://bmcgenomics.biomedcentral.com/articles/10.1186/s12864-020-07303-5
Ahn, S., Kim, S., Park, Y. J., Park, Y. K., Kim, H. D., & Kim, J. (2021). Production, characterization, and epitope mapping of monoclonal antibodies of ribosomal protein S3 (rpS3). Animal Cells and Systems, 25(5), 323-336. https://www.tandfonline.com/doi/full/10.1080/19768354.2021.1980100
Goulet, D. R., & Atkins, W. M. (2020). Considerations for the Design of Antibody-Based Therapeutics. Journal of Pharmaceutical Sciences, 109(1), 74. https://jpharmsci.org/article/S0022-3549(19)30364-8/fulltext
Zeng, X., Bai, G., Sun, C., & Ma, B. (2023). Recent Progress in Antibody Epitope Prediction. Antibodies, 12(3), 52. https://doi.org/10.3390/antib12030052

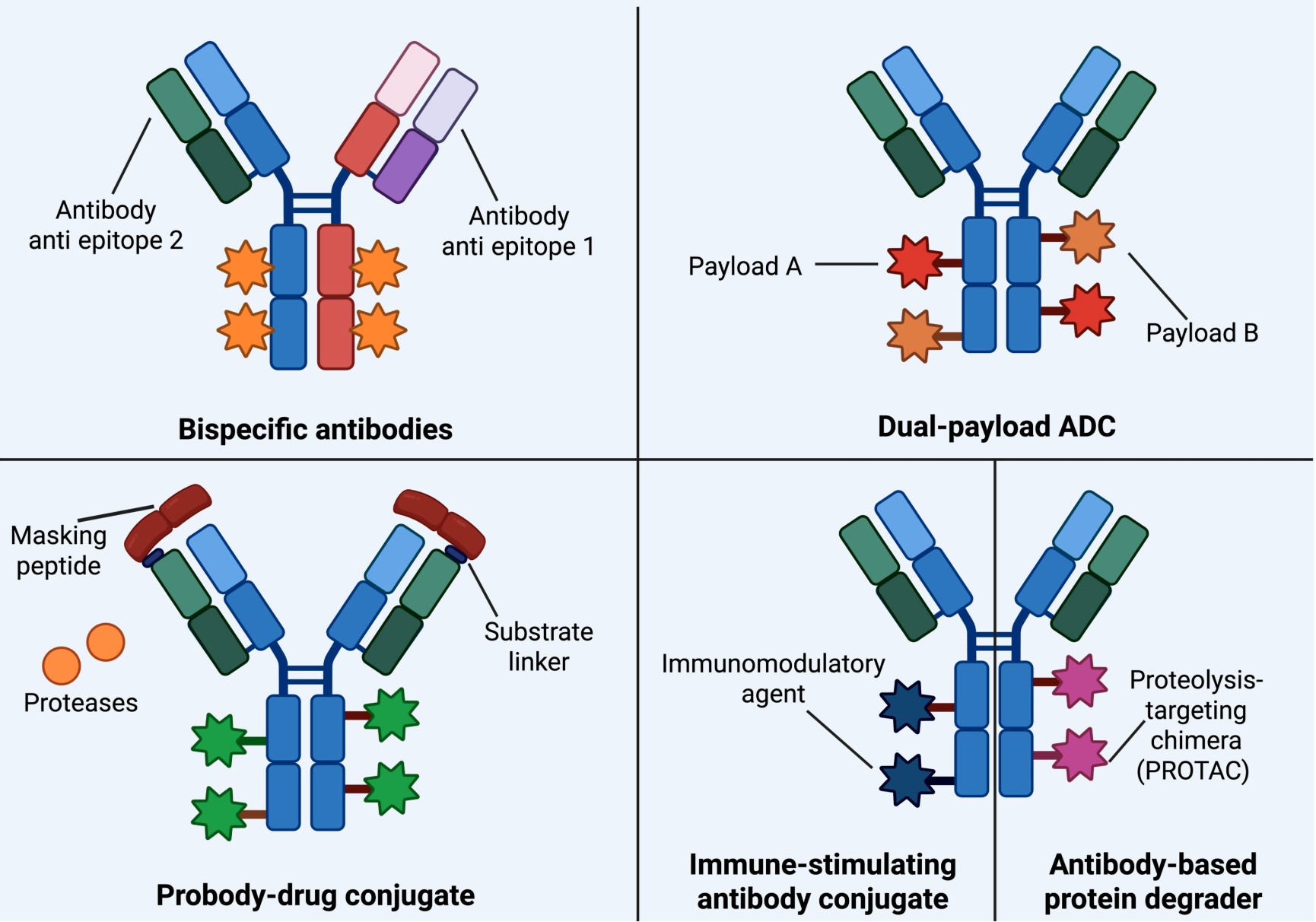

In this article, we explore the major trends shaping the future of targeted canc……

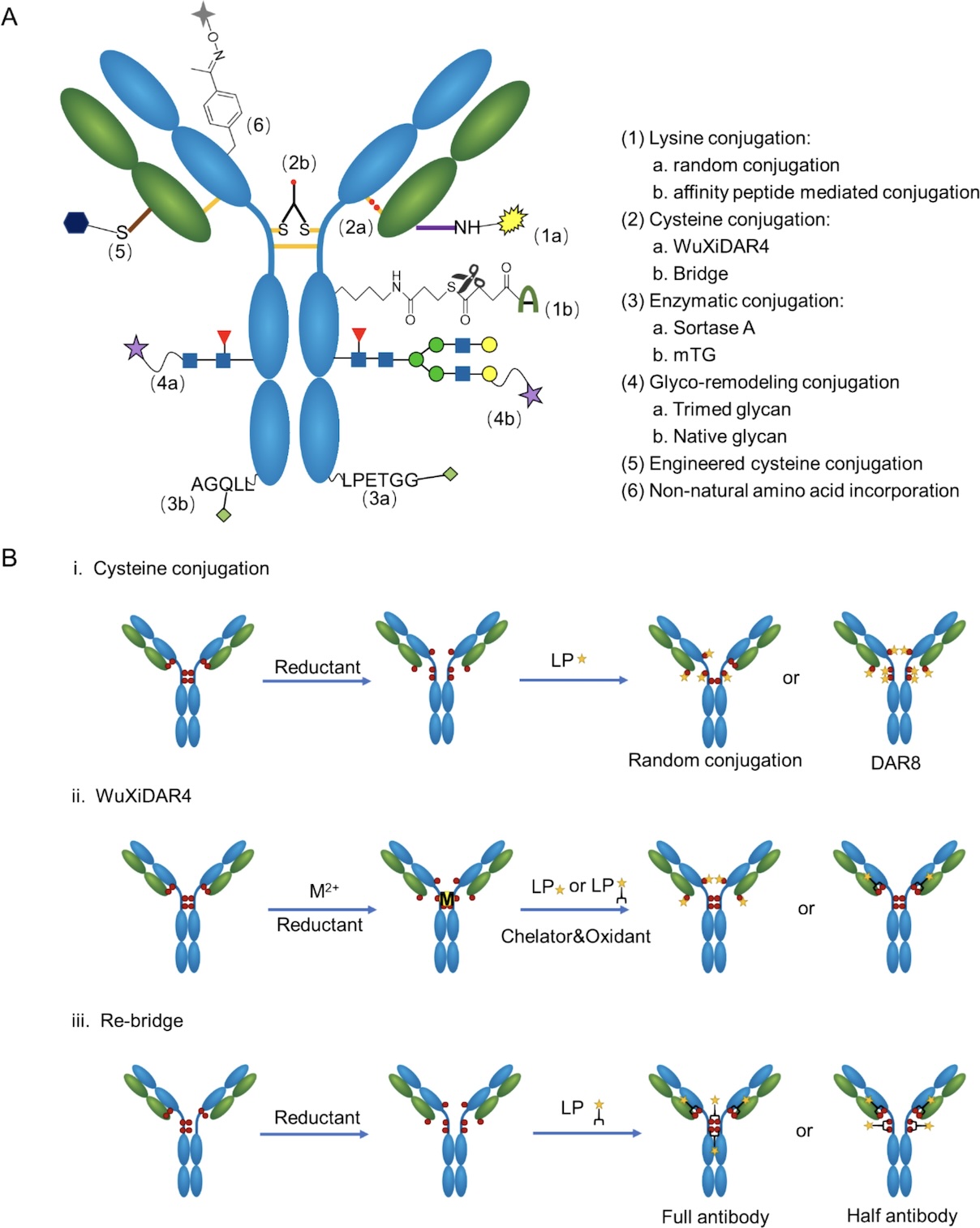

Site-specific conjugation limits payload attachment to defined positions on the ……

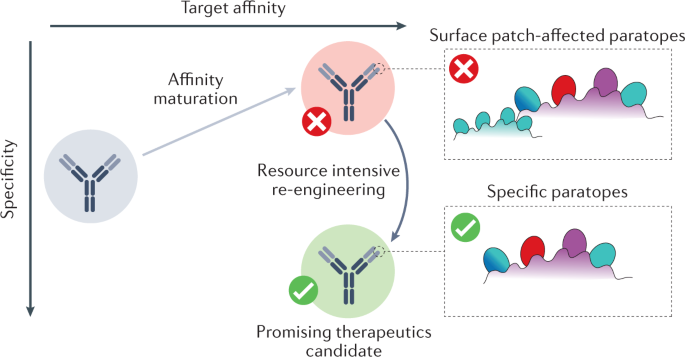

Affinity maturation can improve binding to the intended target, but it can also ……

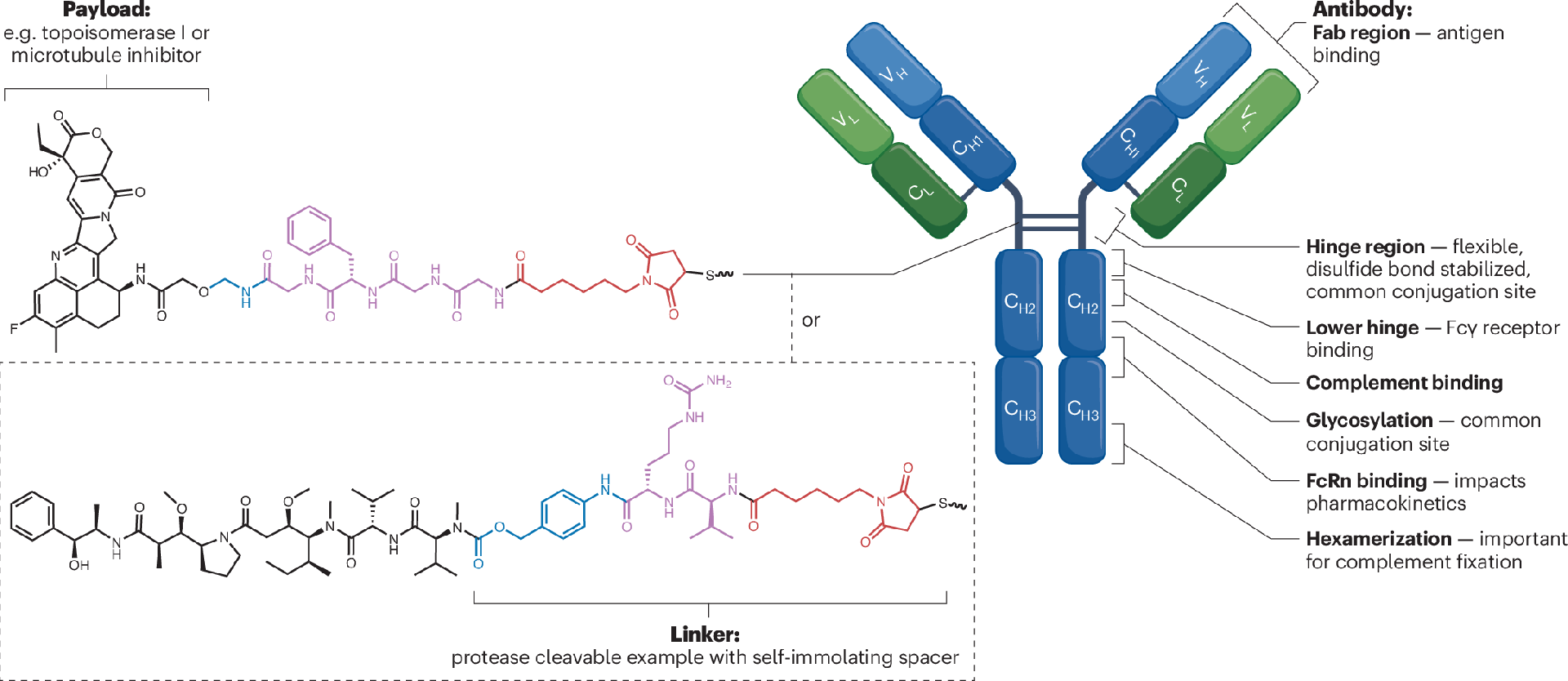

ADC development is no longer limited to the antibody-linker-toxin model. The fie……
